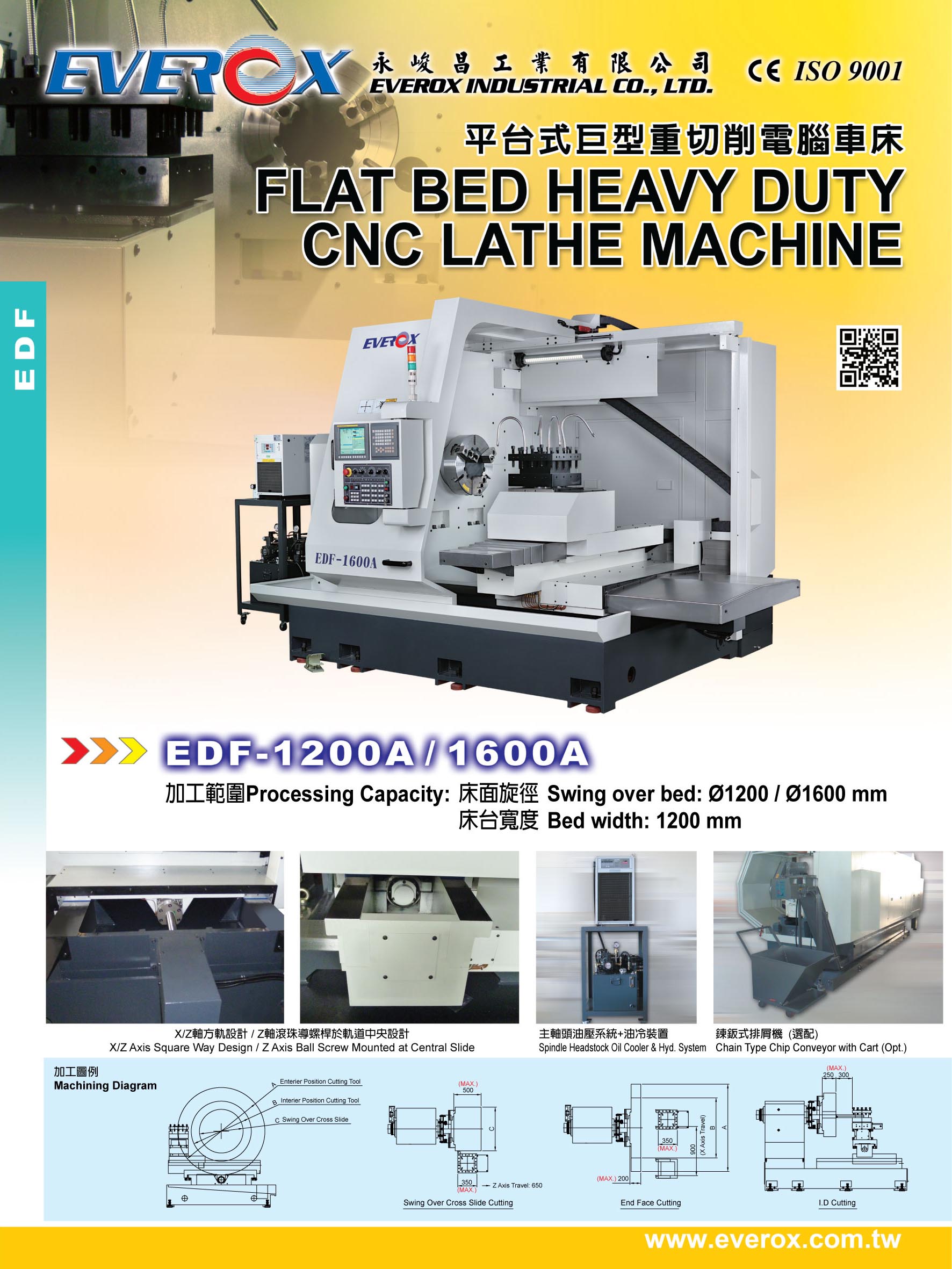

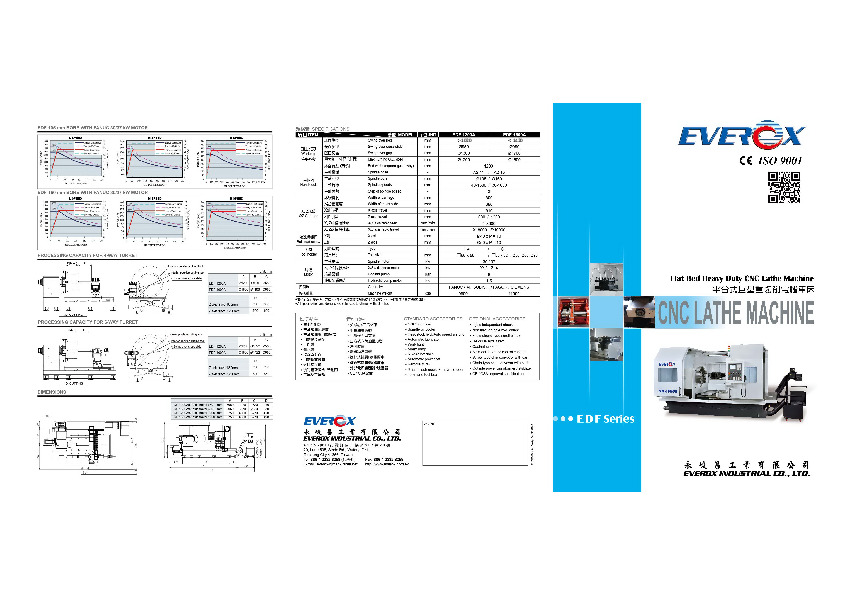

CNC LATHE

EDF-1200A / 1600A

Features

  1. The machine is one single base with hi-rigidity rib structure design. Width of track 1200mm, width of base 1550mm, is the best choice for machining large diameter plates.
  2. Three support on the spindle and inspected by dynamic balancing, it can afford heavy workpieces. The spindle gear is module & wide that is suitable to do heavy cutting and being with 3-step hydraulic automatic speed shifting.
  3. Z-axis is box guide way, and Z axis lead ball screw sets on the middle of guide way. The carriage is coated with Turcite-B which provides low friction & vibration and ensures smooth movement & accuracy.
  4. Adopted central lubricating system which can be lubricated slide way & ball screw. The headstock is adopted forced lubricating & oil bathed combined and designed with oil cooler for reducing the temperature of oil to ensure spindle accuracy

Specification

ITEMUNITEDF-1200AEDF-1600A
Working Capacity
Swing over bedmmφ1200φ1600
Swing over cross slidemmφ550φ950
Swing over gapmmφ1300φ1700
Max. turning O.D.(bed)mmφ1200φ1600
Bed width (square guide way)mm12001200
Headstock
Spindle nose-A2-11 / A2-15A2-11 / A2-15
Spindle boremmφ105 / φ160φ105 / φ160
Spindle speedsrpm40-1500 / 30-100040-1500 / 30-1000
Step of spindle speed-33
X/Z Carriage
Width of carriagemm800800
Width of cross slidemm350350
X axis travelmm910910
Z axis travelmm600 / 1200600 / 1200
X/Z axis feed ratemm/min1-50001-5000
X/Z axis rapid feed ratemm/minX:8000, Z:10000X:8000, Z:10000
Ball lead screw
X axismmφ40 x P = 10φ40 x P = 10
Z axismmφ50 x P = 10φ50 x P = 10
Tool holder
Turret-H4 / H6H4 / H6
Tool sizemm□50x50 / □32x32
φ50,φ60,φ80
□50x50 / □32x32
φ50,φ60,φ80
Motor
Spindle motorkw30 / 3730 / 37
X/Z axis servo motorkwX:3, Z:4X:3, Z:4
Coolant pumpbar66
Hydraulic pump motorkw1.51.5
CNC Controller-Fanuc / Mitsubishi / Fagor / SiemensFanuc / Mitsubishi / Fagor / Siemens
Machine weightkgs980011000

Technical Information

If you have a project you would like to discuss, please get in touch
