CNC LATHE

CNC Lathe EBL-1200 / ECL-1400

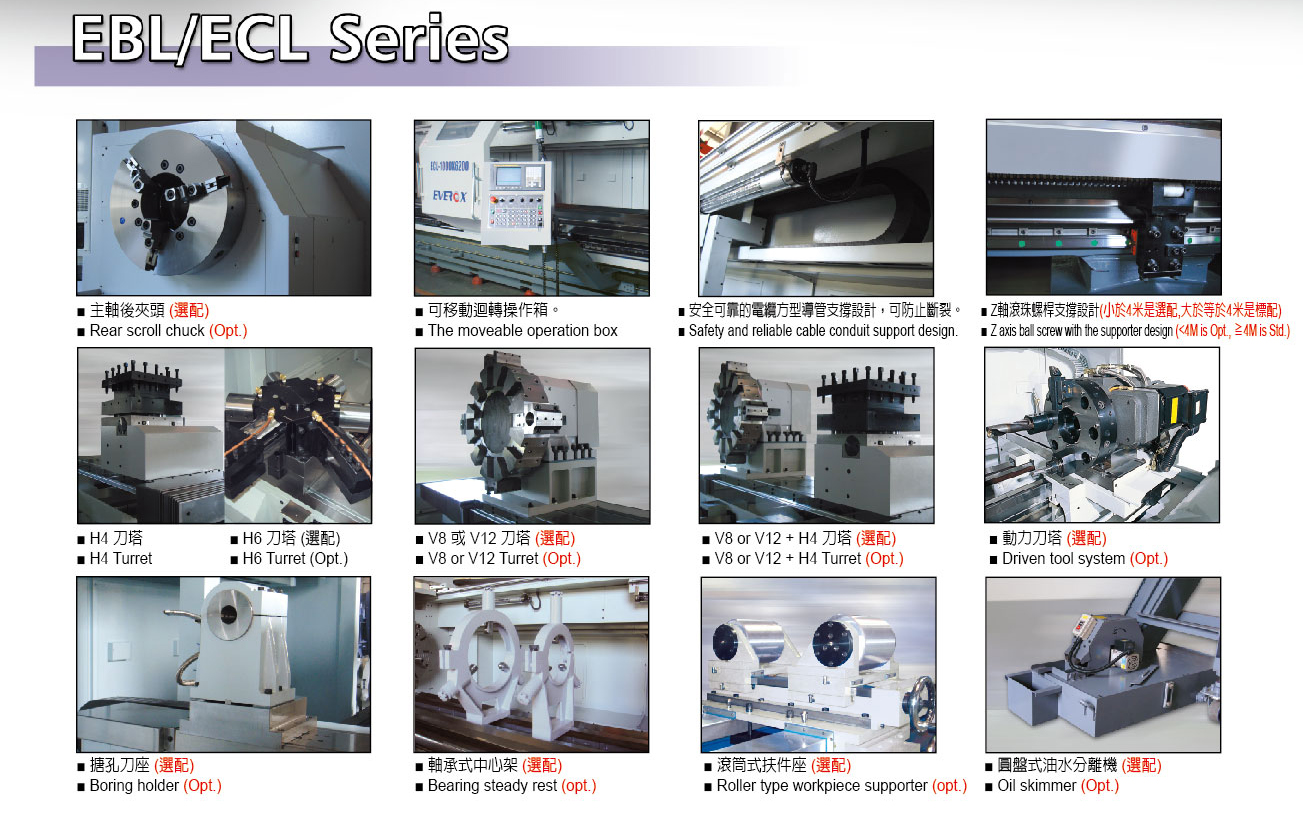

Features

  1. The spindle headstock: 3-point support design for the spindle, and 4-step gear change (hyd. System). Main spindle gear driven is M6 spiral gear.
  2. The high rigidity square way design for the X axis, and it can minimized the distortion which is caused by the overhang of slide cover.
  3. The tailstock and quill are compacted with fully hydraulic operation. (The tailstock body forward and backward, clamp and unclamp, quill extend and retract) The quill diameter isφ250mm (9.842”) and it is rotatable. The center taper MT6 is standard. And the manual tailstock lubrication is standard.
  4. Floor type bed, 3V guide way design, the Z axis ball screw is mounted at front side of the bed. The optional of the second Z axis ball screw can be mounted at the rear side of the bed. The main feature is to reduce the displacement of cross slide.

Specification

ITEMUNITEBL-1200EBL-1400
Working Capacity
Swing over bedmm12001400
Swing over cross slidemm700900
Distance between centersmm2400/3400/4400/5400/6400/7400/8400/94002400/3400/4400/5400/6400/7400/8400/9400
Width of bedmm765765
Headstock
Spindle boremmφ230
φ305/φ360
φ410
φ230
φ305/φ360
φ410
Spindle nose-A2-15
A2-20
A2-28
A2-15
A2-20
A2-28
Range of spindle speed
(4-step speed change)
rpm4-650
1-400
1-300
4-650
1-400
1-300
Height of centermm650750
X/Z Carriage
Width of carriagemm860860
Width of cross slidemm400400
X axis travelmm750750
Z axis travelmm2150/3150/4150/5150/6150/7150/8150/91502150/3150/4150/5150/6150/7150/8150/9150
X/Z axis feed ratemm/min1-50001-5000
X/Z axis rapid traverse ratemm/minX:10000 / Z:8000X:10000 / Z:8000
X axis ballscrew-φ40mm * P=8mmφ40mm * P=8mm
Z axis ballscrew-φ63mm * P=20mm (Model ≦ 4400mm)
φ80mm * P=20mm (Model ≧ 5400mm)
φ63mm * P=20mm (Model ≦ 4400mm)
φ80mm * P=20mm (Model ≧ 5400mm)
X axis servo motorkw4.04.0
Z axis servo motorkw7.0 (Model ≦ 4400mm)
9.0 (Model ≧ 5400mm)
7.0 (Model ≦ 4400mm)
9.0 (Model ≧ 5400mm)
Turret
Number of tools-V8
H4/H6
V12
H4/H6
Tool sizemm□32*32 (φ50mm)□32*32 (φ50mm)
Tailstock
Quill dia.mmφ250φ250
Quill strokemm250250
Tailstock taper-MT#6MT#6
Motor
Main spindle motorkw30/37 kw, 37/45 kw (opt.) (Model ≦ 6400mm)
45/55 kw (Model ≧ 7400mm)
30/37 kw, 37/45 kw (opt.) (Model ≦ 6400mm)
45/55 kw (Model ≧ 7400mm)
Lubricating pump-25 W25 W
Coolant pump motorBAR66
Coolant pump for spindleHP1/21/2
Hydraulic motorHP55
Controller
CNC Controller-Fanuc / Mitsubishi / Siemens / FagorFanuc / Mitsubishi / Siemens / Fagor
Comtrollable axis-22
Machine dimensions
Occupied floor (L)mm7200/8200/9200/10200/11200/12200/13200/142007200/8200/9200/10200/11200/12200/13200/14200
Occupied floor (W*H)mm4100 * 25204100 * 2520
Net weightkgs19000/21000/23000/25000/28000/31000/34000/3700019000/21000/23000/25000/28000/31000/34000/37000
